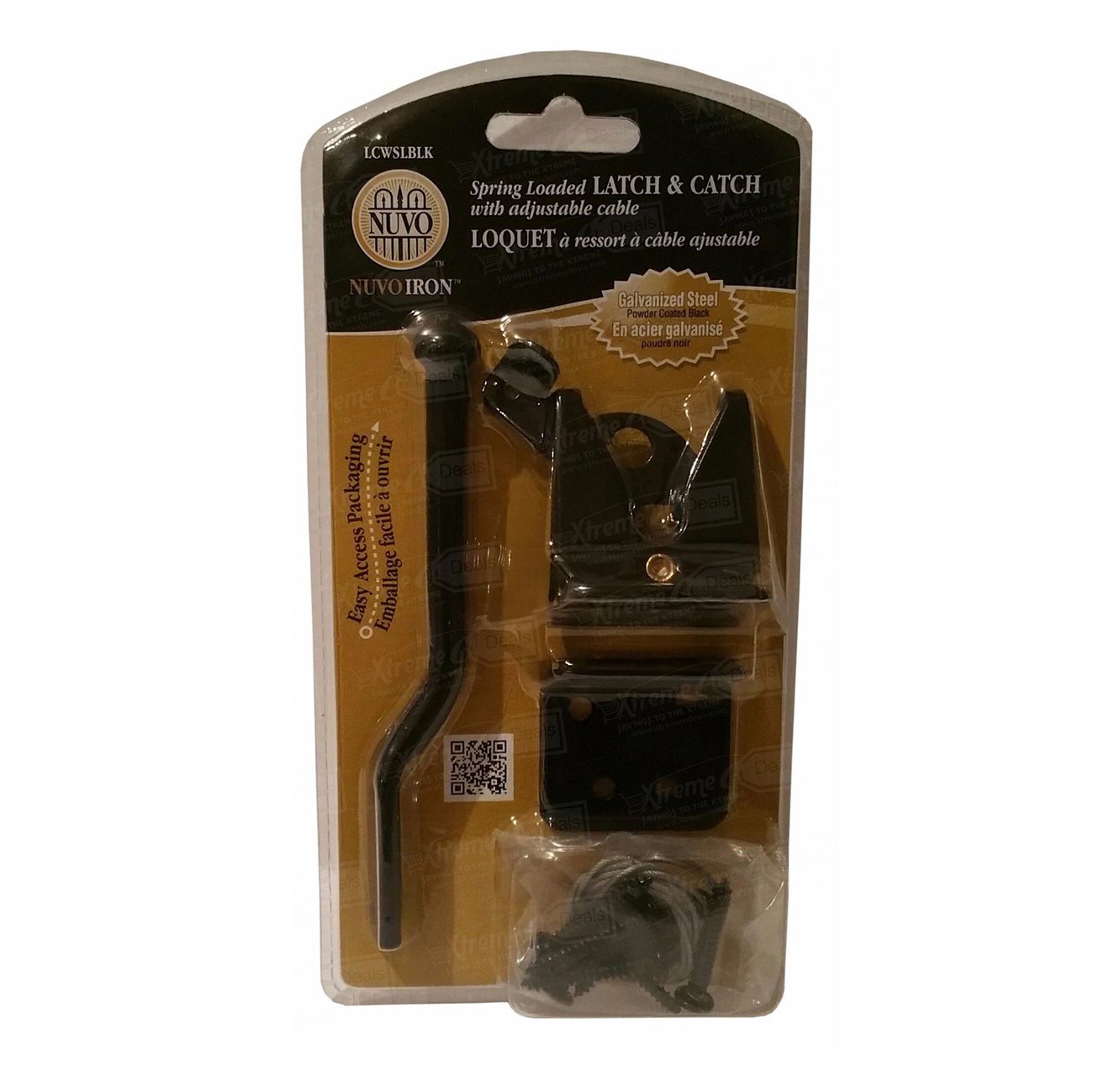

Nuvo Iron Spring Loaded LATCH & CATCH with adjustable cable Part # LCWSLBLK
The Nuvo Iron Spring Loaded Latch & Catch is designed for Gates and Animal Pens.Suitable for either right or left handed application.
– Galvanized Steel Powder Coated Black
– Easy to install.
– Easy open packaging
– Model WGCKH
– Screws and cabel included
Instalation instructions:
Provision for padlocking
Gate and Post must be flush.
Bar to be leveled and fastened using screws provided (Option A).
Gravity plate is installed (Option B).
Lift and press top of latch against post. Mark post where cable is fastened to the gate latch.
Drill 3/16” (4.75mm) through the post and feed cable through the post hole. Loop end of cable and fasten using cable sleeve clamp and allen key provided (Option C).
